GATE SECURITY: Main Package inc Installation

A stand-alone silent battery 3G GSM wireless perimeter alarm supplied with a set of solar laser beams connected to a wireless transmitter and a battery powered 3G GSM Dialler. Armed and disarmed with remote control with the ability to contact up to three key-holders by phone and SMS when triggered. Ideal for remote locations with no power.

Supply and fit

• 1 x set of Solar Laser Beams (can be mounted up to 100 metres apart).
• 1 x Wireless Transmitter (connected to the Beams by cable).
• 1 x Battery powered wireless 3G GSM Dialler (would be hidden away out of sight).

For locations with no access to a power supply, and allowing the 3G GSM Dialler to be safely hidden away, it will silently contact key-holders by mobile phone and SMS.

The alarm is armed and disarmed using Remote Control from up to 100 metres away.

Additional Wireless Solar Sirens can be added should you want to make some sound, these can be mounted up to 100 metres away from the Beams if required, this still leaves the 3G GSM Dialler silently calling key-holders, the options include:

Additional options

• Large Solar Siren and Strobe Light
• Solar Siren and LED

How it works

The beams are powered by built in lithium batteries which are charged and maintained by the built in solar panels and can be mounted up to 100 metres away. A pair of invisible infrared beams (60mm apart) need to be breached at the same time – this avoids false alarms from small animals.

One of the beams is connected into a battery powered wireless transmitter normally fitted onto the back of a post.

The 3G GSM Dialler is fully weatherproof (IP66) and powered by 3 x lithium AA Batteries and would be hidden away up to 30-40 metres away from the beams.

The complete system is armed or disarmed using the remote control supplied (additional remote controls available) from up to 100 metres away. When triggered the alarm will silently contact up to three key-holders by mobile phone (with your personal pre-recorded message) and SMS. You can select to turn the calls or text message off during programming. If you have also added one or more Solar Sirens, these can be making all the sound in a nearby location taking all attention away from the alarm.

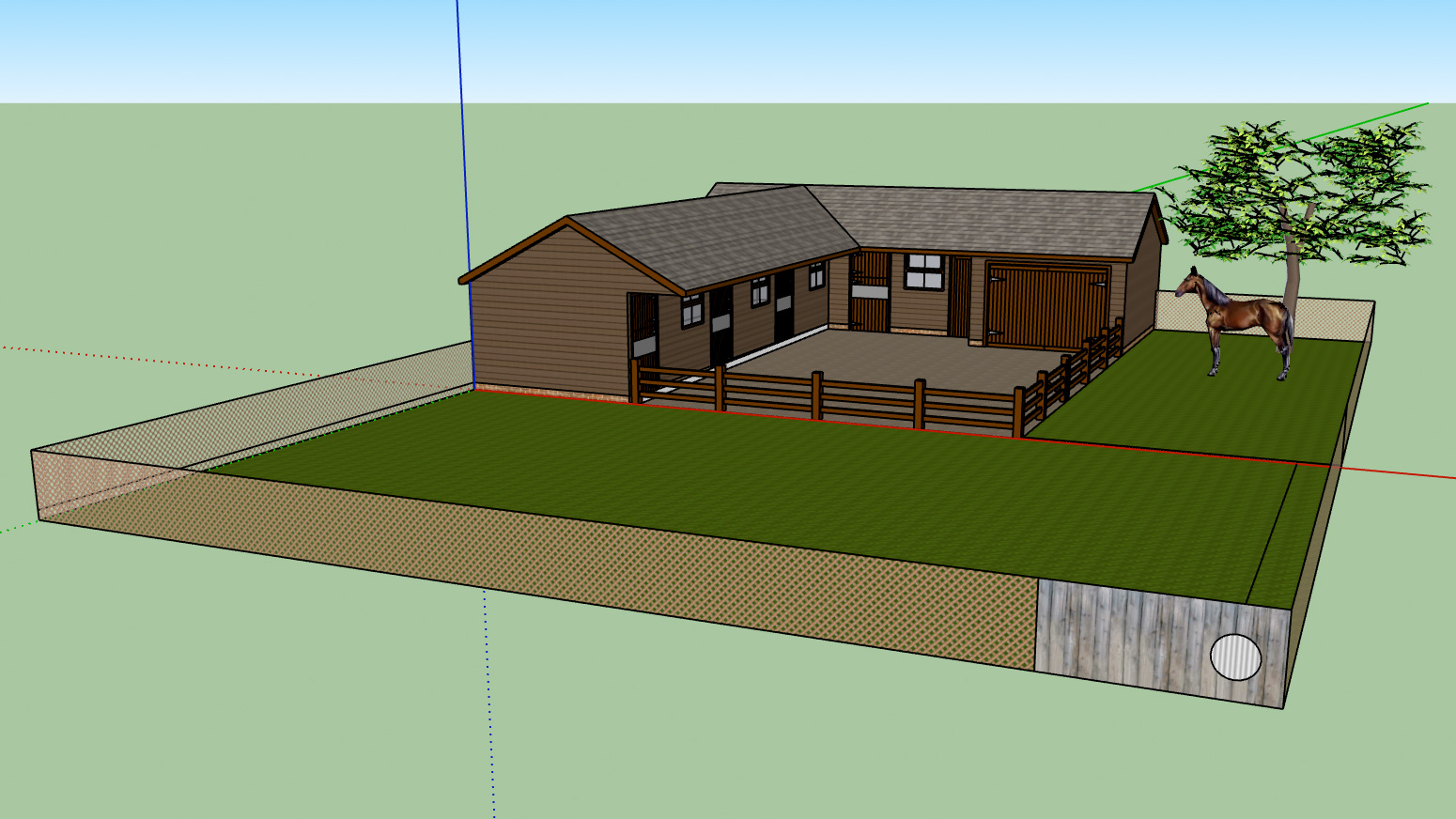

The perimeter alarm allows you to protect up to 100 metres in even the most remote rural locations provided you do have a mobile signal on site, ideal for:

• Yards
• Gateways
• Vacant Buildings

Contacting Key-holders

The Alarm will contact between 1 and 3 key-holders (depending on how you have chosen to program the alarm) by mobile phone and SMS (either can be turned off whilst programming the alarm) when activated.

It will normally take take between 30-60 seconds to call the first key-holder as the battery wakes up (this can vary depending on the mobile phone networks at the time).

Recording message

You can record a 30 second message into the alarm, which will be replayed to the key-holders when the alarm calls them.

Arming and disarming

The alarm is armed and disarmed by using the remote control from up to 100 metres away, up to 9 remote controls can be used with each alarm.

There is a 30 second exit delay built into the alarm for easy use.

Receiving a call

When the alarm calls the key-holders, there is the choice to:

• Listen to your pre-recorded message and do nothing (the alarm will contact the other key-holders).
• Listen to your pre-recorded message and press # on your phone (this will disarm the UltraDial and prevent it from calling further key-holders).
• Listen to your pre-recorded message and press * on your telephone (this will prevent it from calling further key-holders, but keep the Alarm fully armed (ready for further activations).

Wireless transmitter

The wireless transmitter supplied connected to the beam is powered by a CR2 Lithium Battery and is mounted inside a weatherproof mounting box, the transmission range back to the 3G GSM Dialler is 100 metres (line of sight) which equates to around 30-40 metres in most applications).

Additional beams

It would be possible to add additional sets of beams with wireless transmitters to this alarm, all connecting to the 3G GSM Dialler.

Wireless alarm detectors

It is possible to add additional Wireless Sensors into the 3G GSM Dialler should you have buildings nearby (20-40 metres away) that you want to also protect, these include:

• Battery PIRs with built in sirens
• Battery PIRs with a hood and siren
• Battery PIRs, can be used without the SIM Card but in silent mode
• Battery PIRs with a hood used without the SIM Card in silent mode
• Battery wireless door contact

Easy programming

It is very easy to program by using the small built in keypad, following some very simple instructions.

Weatherproof

The 3G GSM Dialler is fully weatherproof and rated at IP66, so can be used in most locations.

Low battery

The alarm will send the primary key-holder a SMS text message if the batteries are getting low.

Weekly report

If required, the alarm can be programmed to send you a status report once a week at 9am.

Security screws

The lid is fitted with 4 x security screws with a tool we’ll supply.

Full beam information

The ‘R’ Beam is supplied with a N/O & N/C Output Cable which is connected into the wireless transmitter, the second beam has no cable connection.

The beams also have the built in wireless transmitters which will trigger the Wireless Siren but can also be used with an indoor Receiver from up to 900 metres away (line of sight), ideal for customers wanting to possibly move the Beams between different locations and applications.

The Dual Detection Technology works by having a pair of Detectors (set 60 mm apart from each other) on each Beam, both Detectors have to be breached simultaneously to create an activation, allowing small animals, insects, leaves & debris to safely pass by.

The Beams are supplied as a pair together with mounting brackets, they need to be installed in such a way that they are facing each other up to a maximum of 100 metres apart.

They are easy to line up using the built in screen together with the option of having a low audible beep a few seconds after being breached (which some customers like to keep turned on), while some customers use this feature during the initial set up mode.

The Beams are powered by built in lithium batteries which are charged and maintained by the built in solar panels, the solar panels require daylight to function, suitable for most outdoor applications.

There is an optional rear mounted charging point for customers who may have to fit one or both beams in the shade, these could then have a maintenance charge a few times a year using a plug in transformer or battery pack.

SIM cards

The Alarm uses a standard size SIM Card (PAYG or Contract), please be careful with some PAYG Contracts as they can remove your outstanding balance at the end of every month even if it hasn’t been used, or cancel the Card with no notice if it hasn’t been used.
Because of this we do offer a Roaming (M2M) SIM Card for customers purchasing our alarms (at cost) because they are designed for use in Alarms, full details of these can be found (HERE), you will see the option of adding a SIM Card next to the Add to Cart Button.
If you purchase your own, note you do not need data when asked.
